FNIRSI 50MHz Handheld 3 in 1 Dual Channel Automotive Digital Oscilloscope Multimeter Signal Generator 2C53T Upgrade Tools

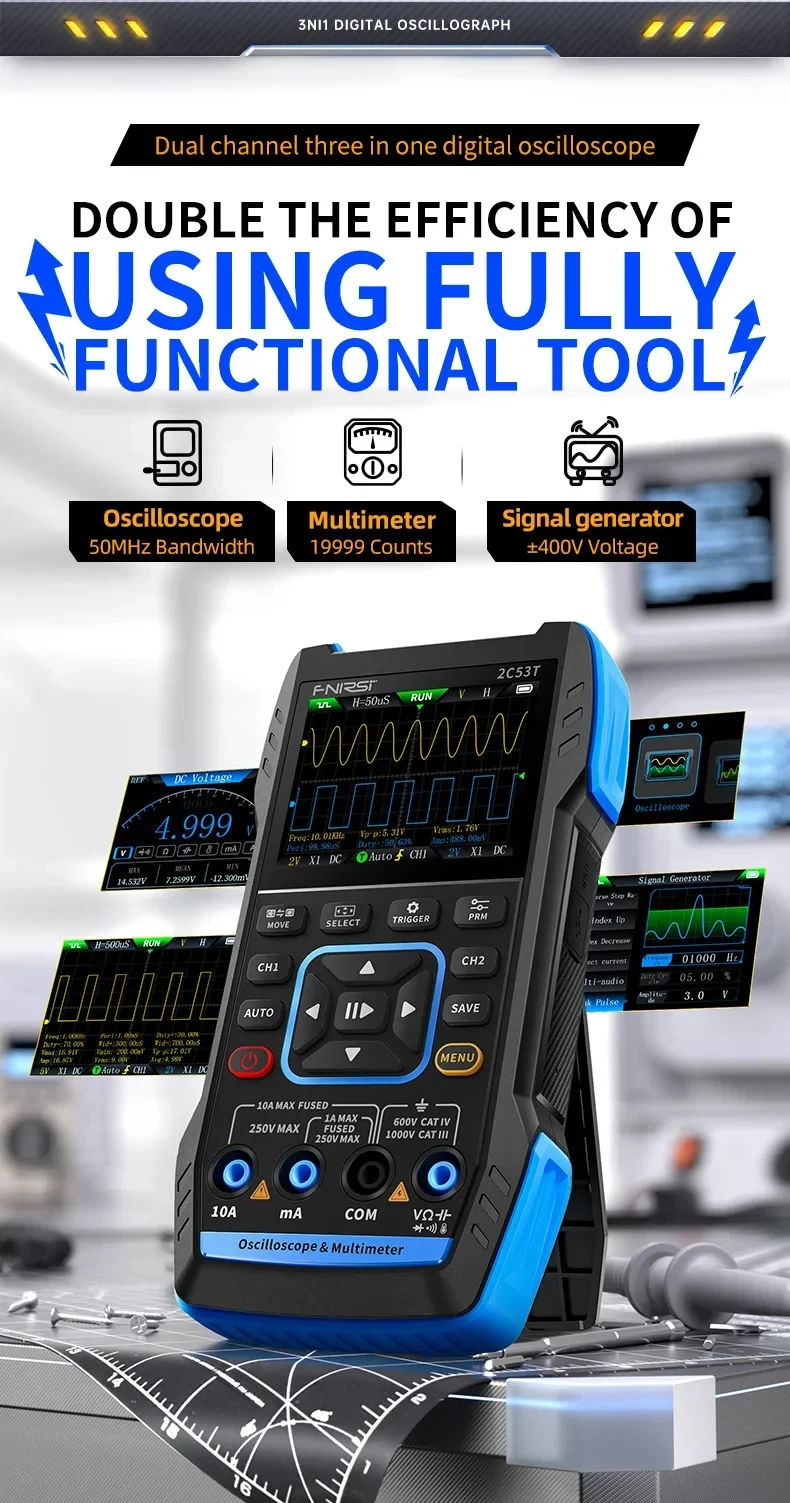

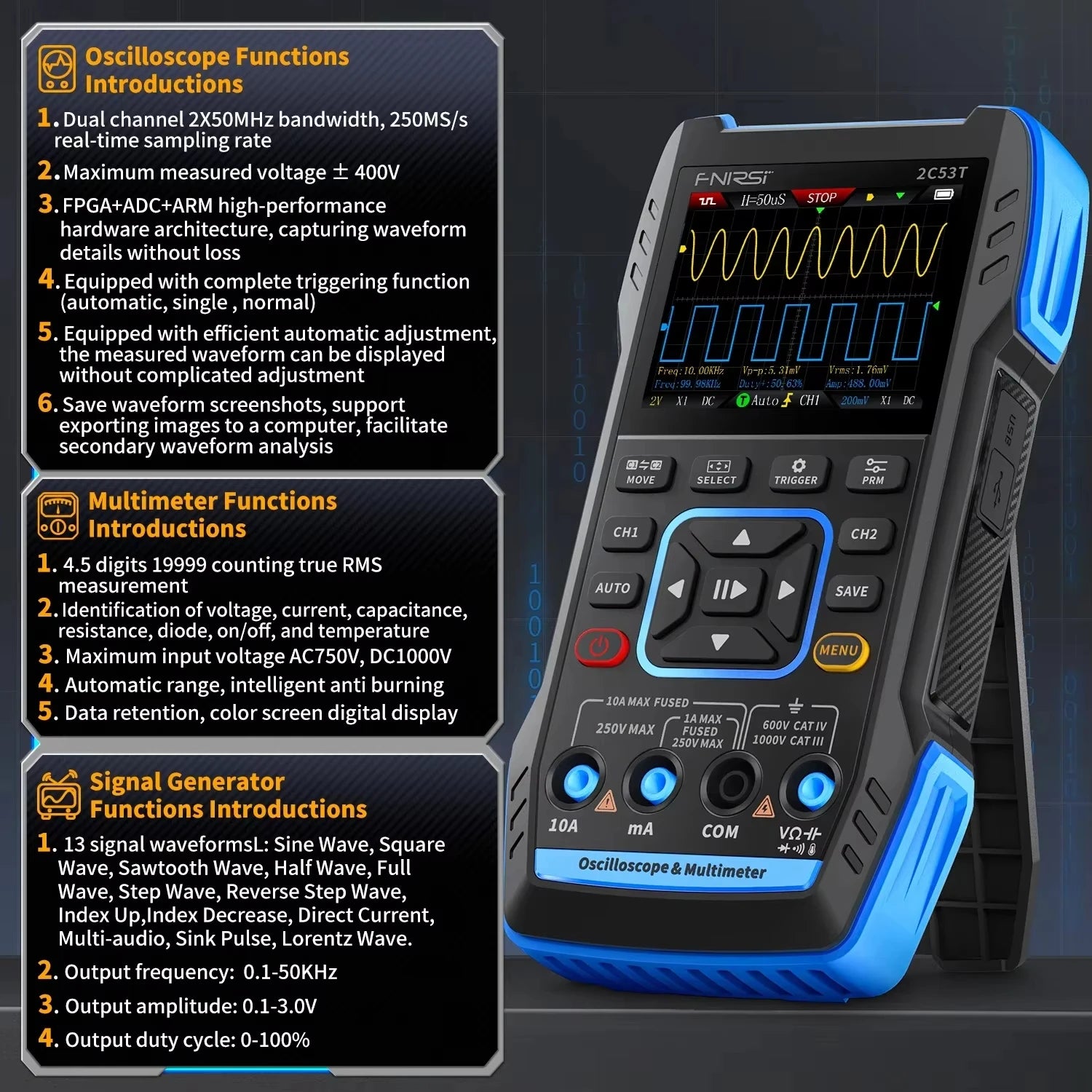

This device is equipped with three main functions of oscilloscope, multimeter, and signal generator.

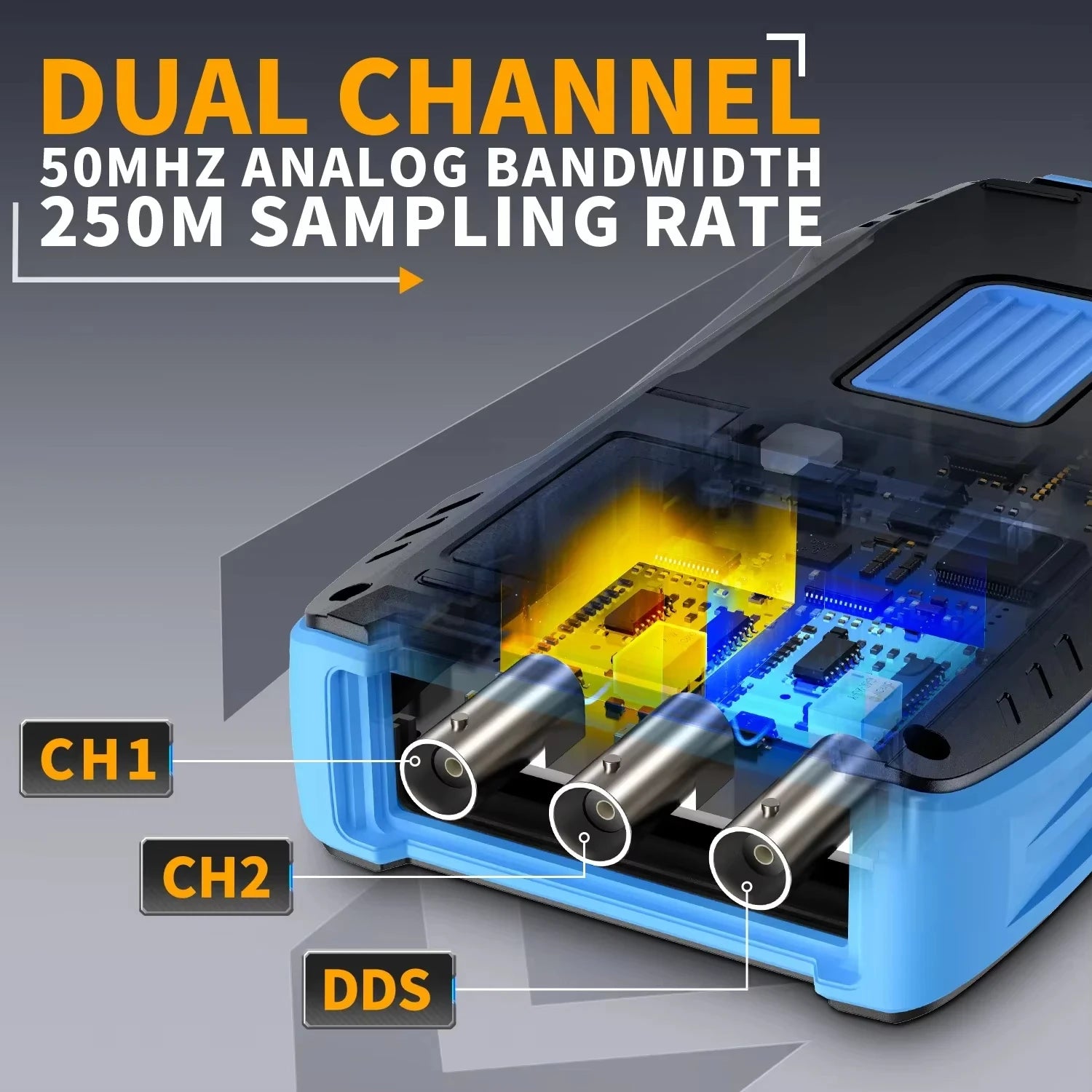

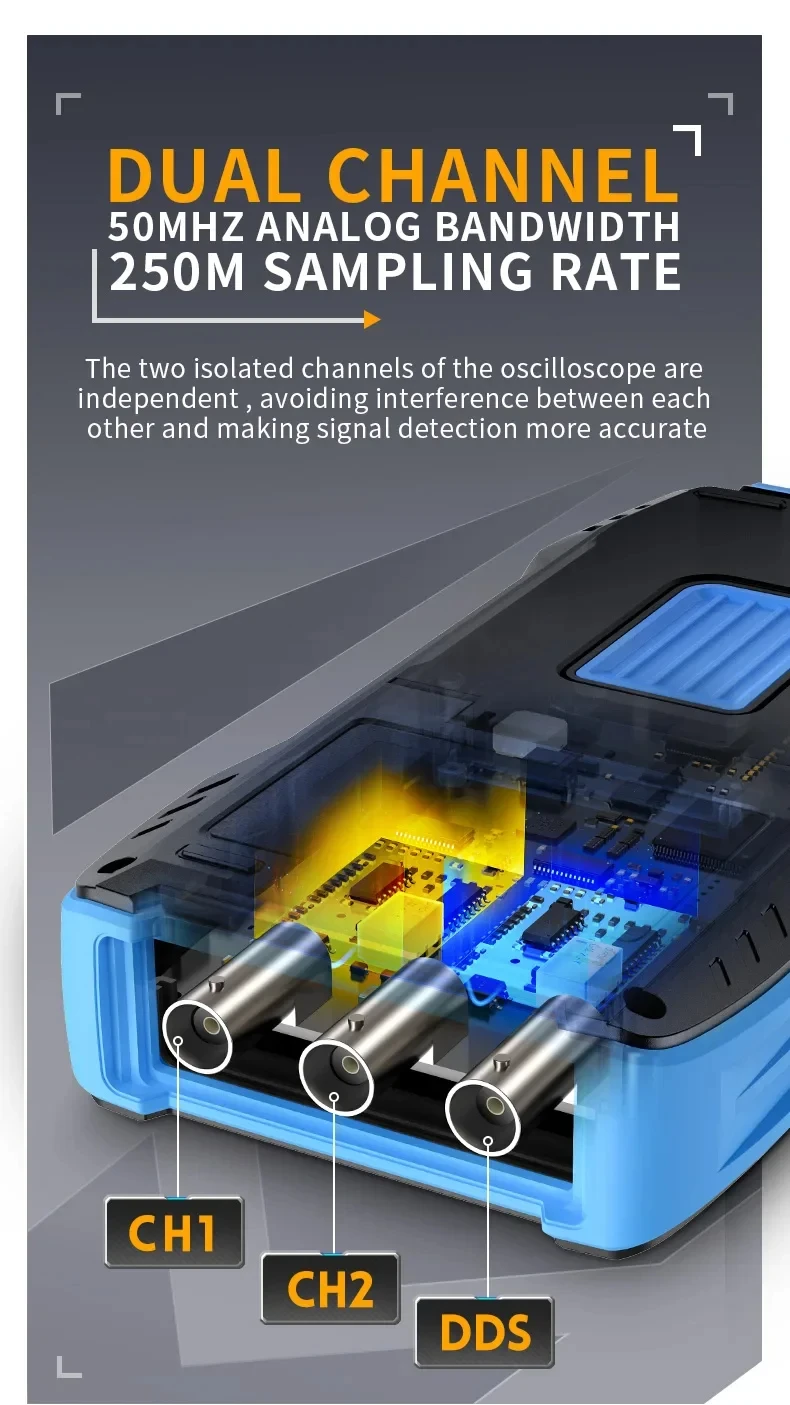

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V;

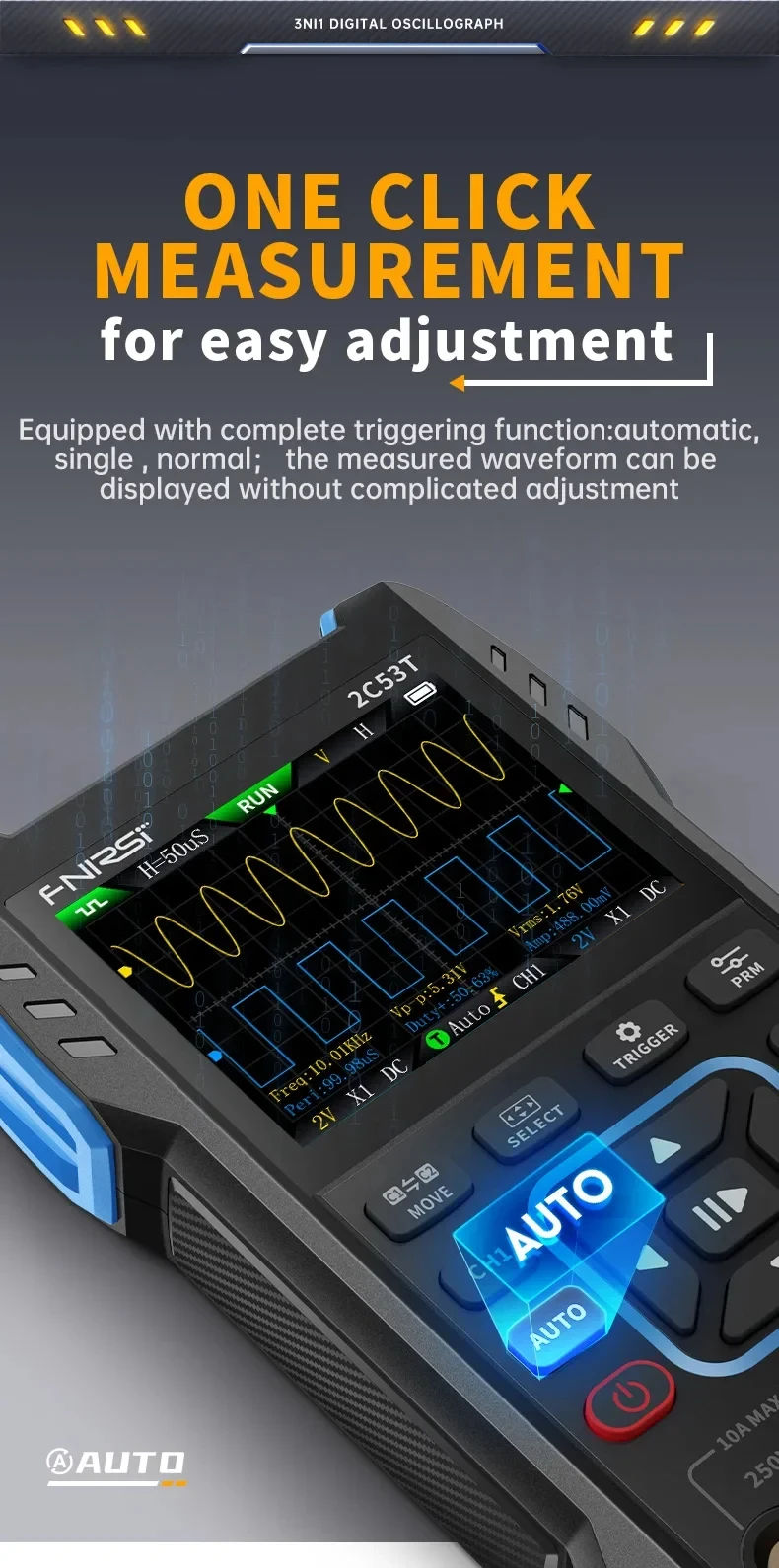

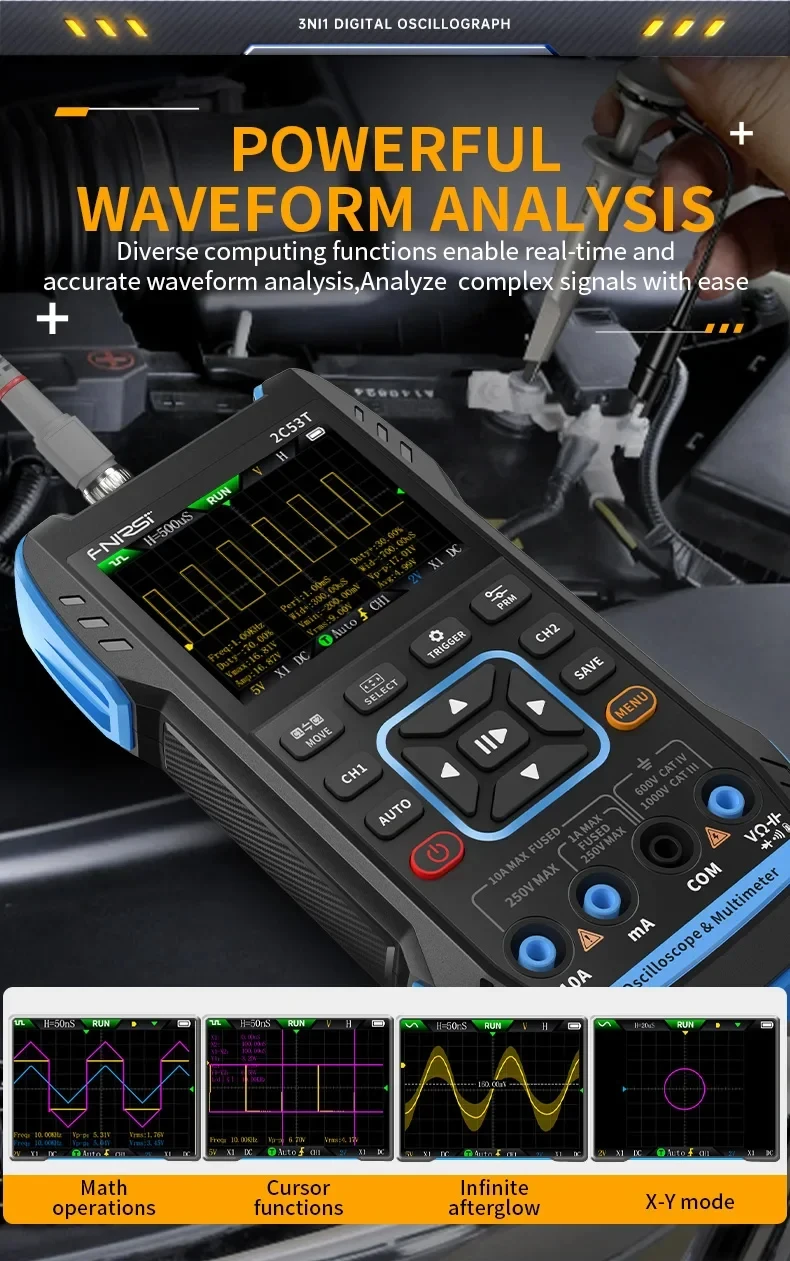

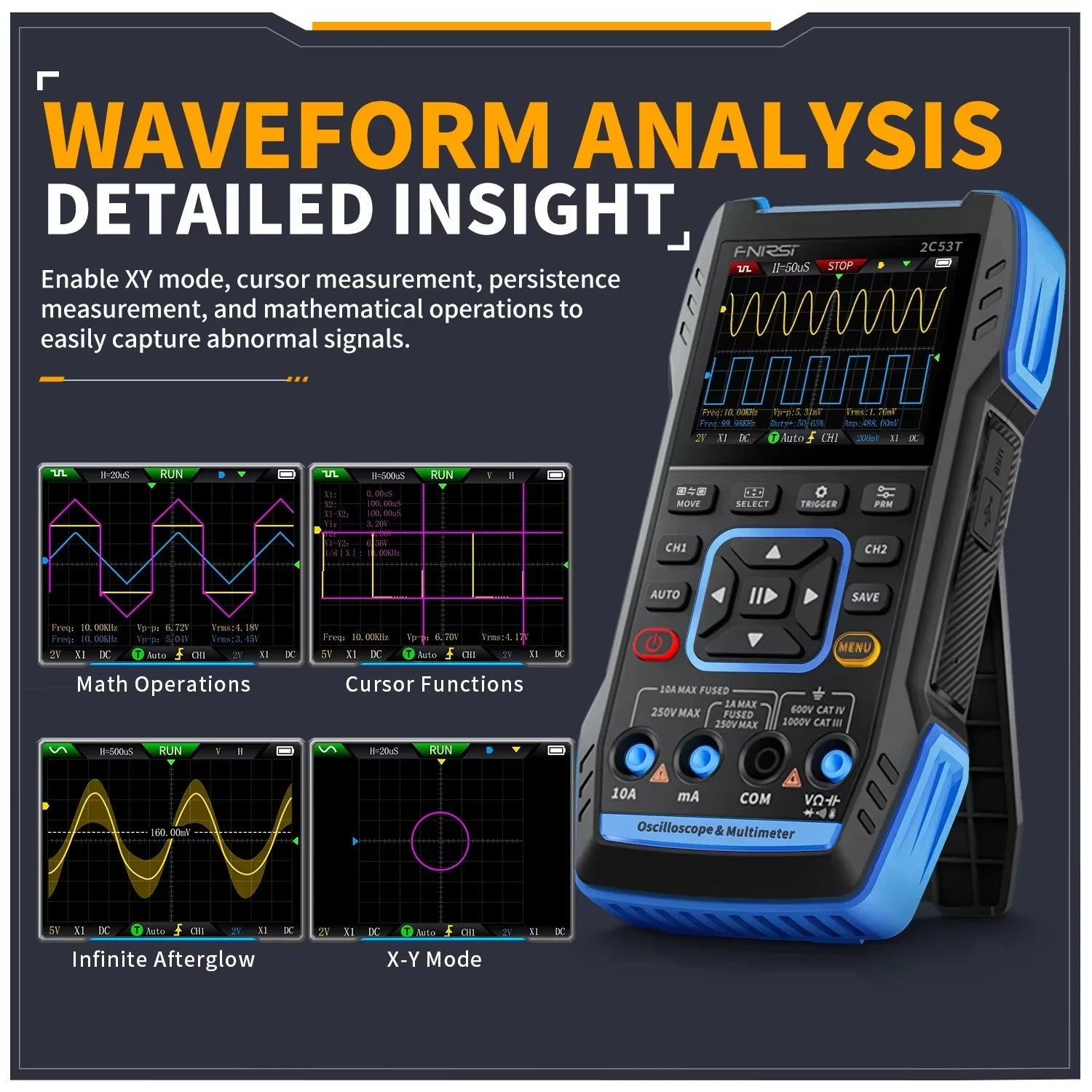

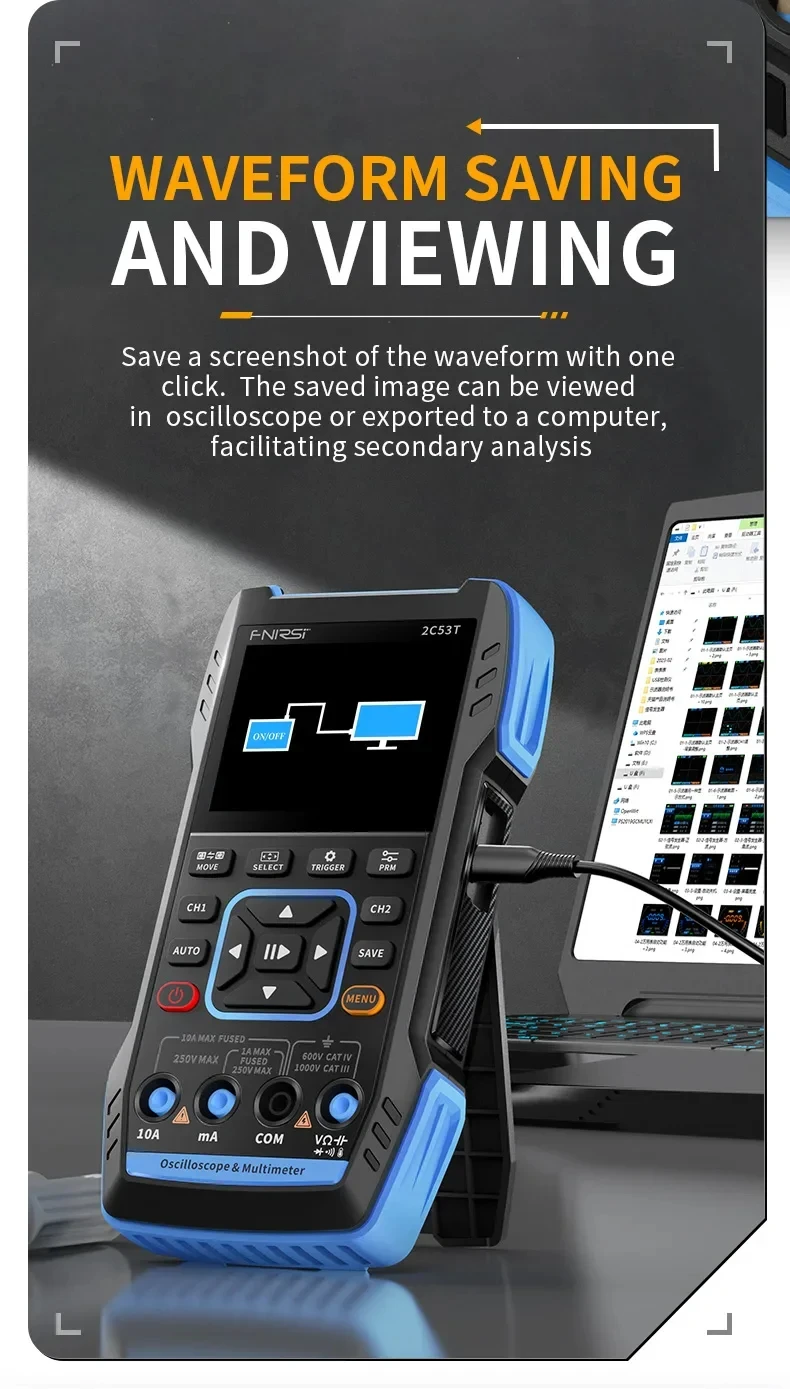

Support for saving and viewing waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions.
Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.

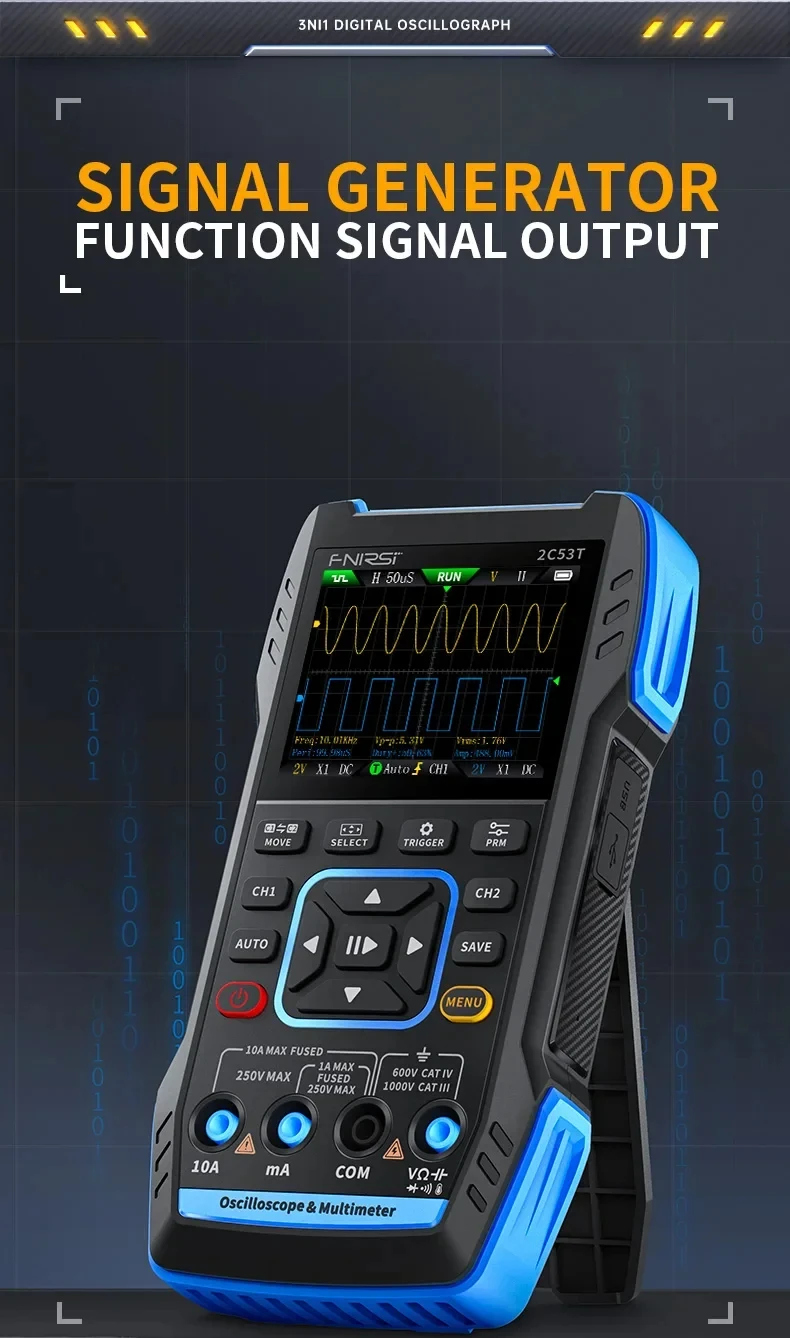

Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

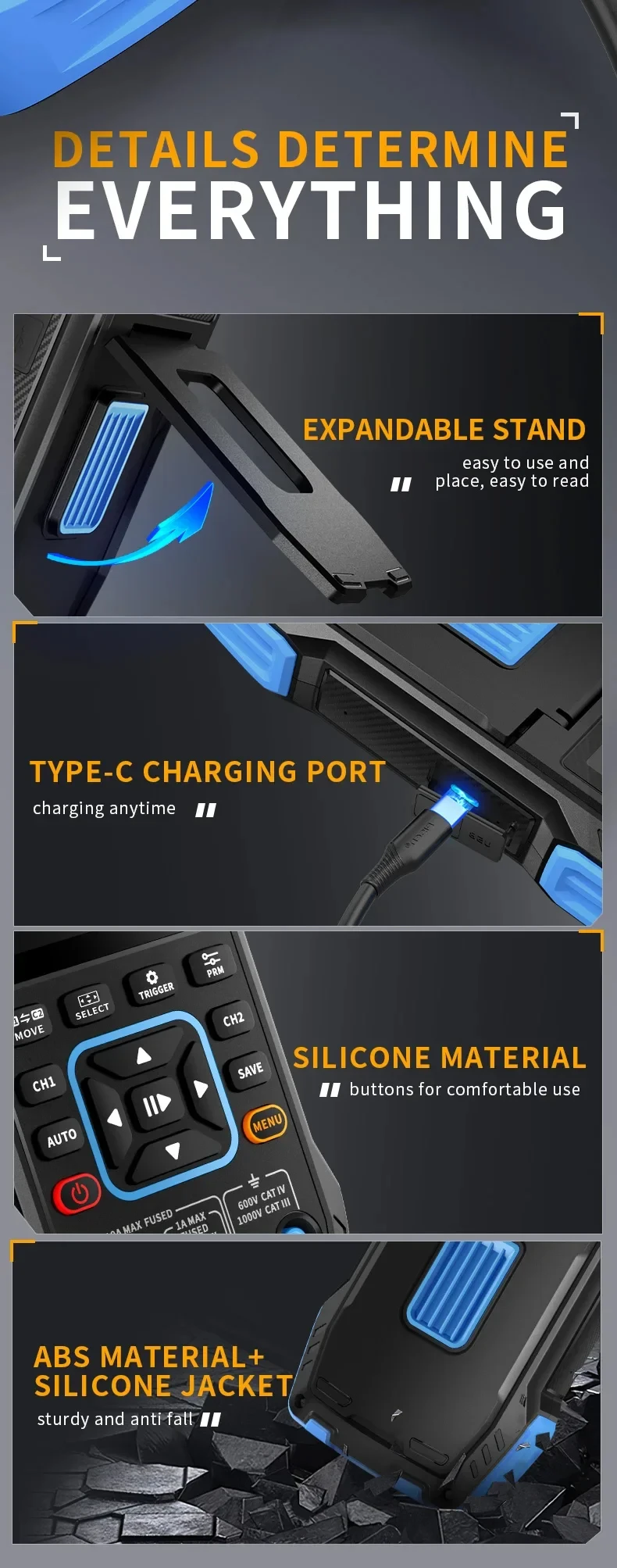

Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provide users with more and stronger practical functions in a compact size, while also having good portability.

Basic parameters:

Product model: 2C53T

Display: 2.8-inch high-definition color screen

Charging characteristics: Type-C (5V/1A)

Battery: 3000mAh lithium battery.

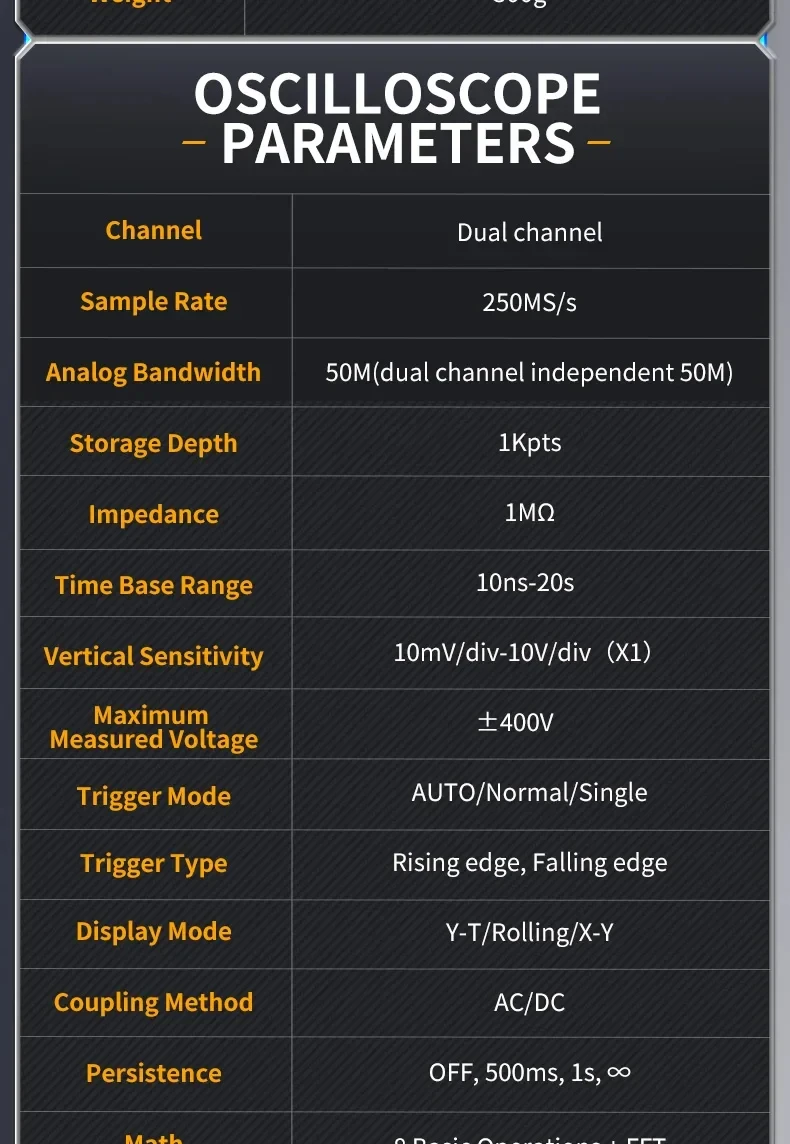

Oscilloscope parameters

Channel: Dual channel

Sampling frequency: 250ms/s

Simulated bandwidth: 50m (dual channel independent 50m)

Storage depth: 1000 spot

Impedance: 1m

Scanning range: 10ns to 20s

Vertical sensitivity: 10mV/case -10V/case (x1)

Maximum measured voltage: ± 400 V

Trigger mode: automatic/normal/single player

Trigger type: rising front, falling front

Display mode: Y-T/Rolling/X-Y

Connection method: AC/DC

Constant: off, 500ms, 1s, ∞

Mathematics: 8 Basic Operations+BPF

Save signal shape screenshot: Supports

Signal image export: Supports

Cursor measurement: supports

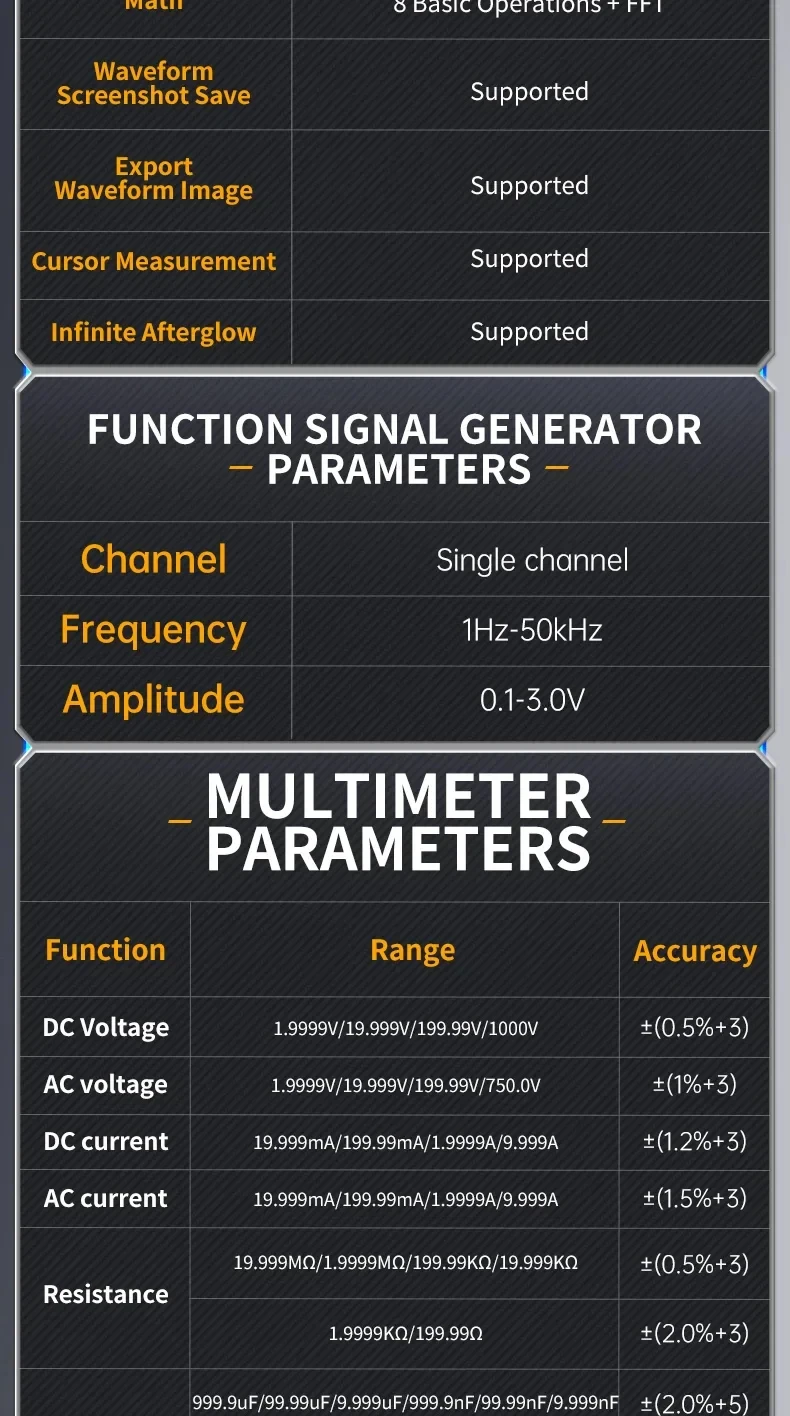

Multimeter parameters

DC voltage: 19999V/19999V/199.99V/1000V

AC voltage: 19999V/19999V/199.99V/750.0V

DC current: 19999A/1999.99 mA/19999A/9999A

AC power: 19999A/1999.99 mA/19999A/9999A

Resistance: 19999 Ω/19999 Ω/19999 Ω/19999 Ω, 19999 Ω/19999 Ω

Capacity: 999.9 µ F/99.99 µ F/9999.9 NF/99.99 NF/9999 NF/9999 MF

Temperature: (-55~1300 ℃)/(-67~2372 ℃)

Diode: Yes

Continuity check: Yes

Signal generator parameters

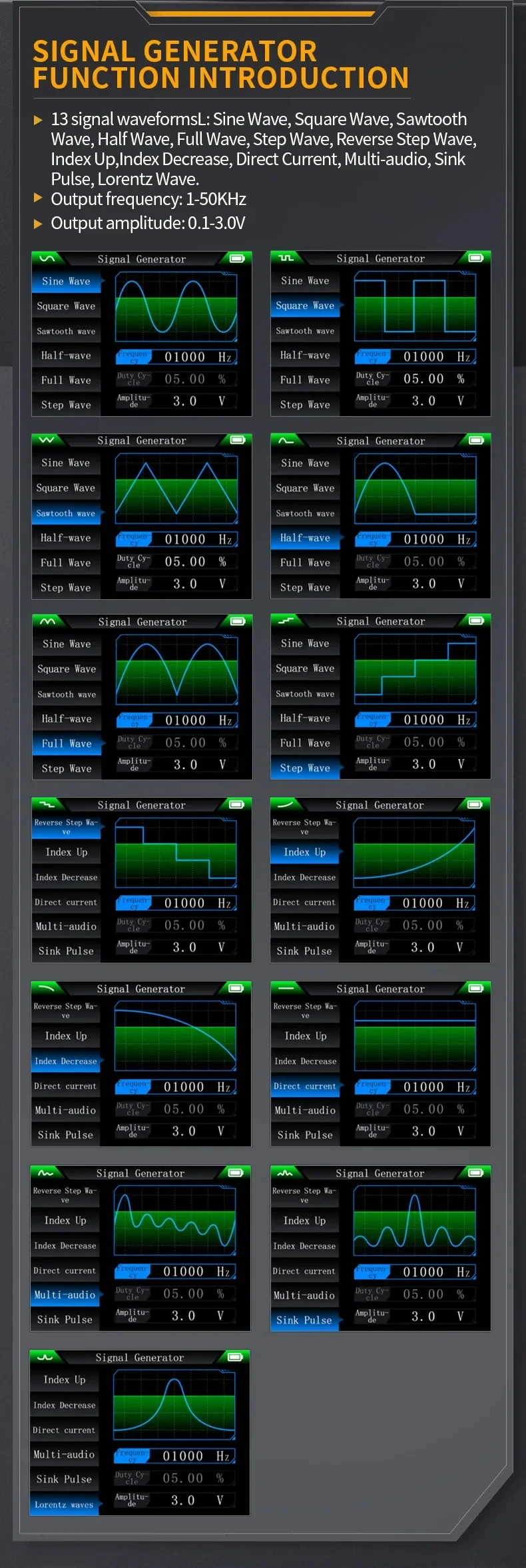

13 Signal forms: Output signal forms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive graded wave, negative graded wave, exponential growth, exponential decay, DC, multi tone, synchronous pulse, Lorentz wave

Output frequency: 0-50 kHz

Output amplitude: 0-3V

Output work cycle: 0-100%
