100MHZ Digital Oscilloscope 2 Channel Handheld Touch Panel Oscilloscope Signal Generator English, Russian, Portuguese, Spanish

$231.50 USD

~~$0.00 USD~~ $231.50 USD

Sale Sold out

Color Smto1002 Smto1002S

Plug Type Eu Us

SMTO1002	SMTO1002S
Main function (oscilloscope)	Oscilloscope + signal generator
language	Chinese, English, Russian, Portuguese, Spanish
Number of channels	Dual channel
Maximum real-time sampling rate	1GSa/s at 500 channel and <>MSa/s at dual channel
bandwidth	100M
Storage depth	32K per channel
Vertical resolution	8bit
Vertical gear	1mV - 10V (5, 1.2, 5 steps) with probe X5, max. measurement voltage X1 (40V) X10 (400V) With high-voltage probes, the maximum voltage is determined by the probe quality
Horizontal gear	5s - 10ns (5S - 100ms for CAN scan mode)
impedance	1MΩ 25pF
coupling	DC, AC
Display mode	YT mode + XY mode (Li Shayu mode)
Automatic measurement of parameters	13 types (frequency, period, amplitude, maximum, minimum, average, rms, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width, rise time, fall time)
Input voltage	X1 MAX 300V
Trigger mode	Automatic, normal, single-shot
Trigger type	Rising edge, falling edge
Automatically detect	50Hz - 30MHz
Cursor measurement	Both vertical and horizontal support cursor measurement
Mathematical calculations	CH1+CH2,CH1-CH2,CH2-CH1
Waveform recording	32 groups (record waveforms, zoom in and out to view details)
Snipping function	In the tank
Self-calibrating	In the tank
Screenshot	Support U disk screenshot (image format jpg)

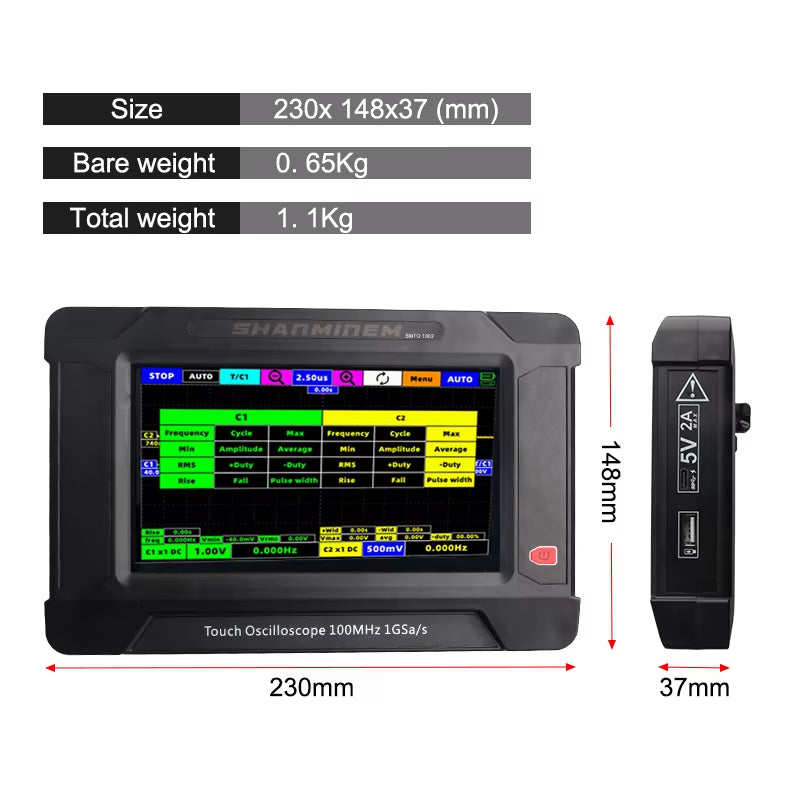

display	7 inch capacitive touch screen
battery	8000mA large-capacity lithium-ion battery (can be used for more than 6 hours when fully charged)

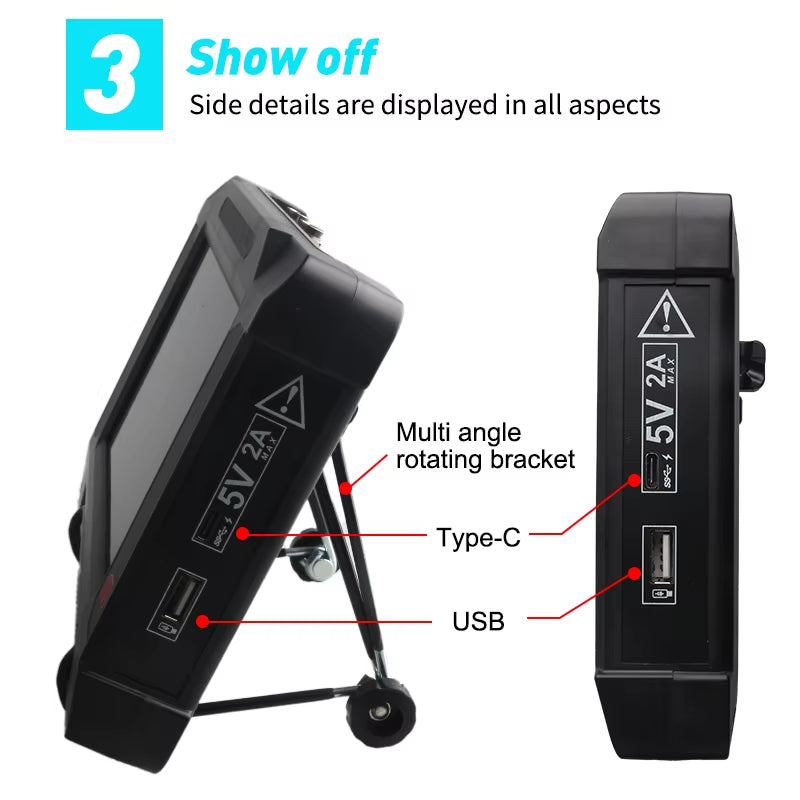

charge	Maximum support 5V2.1A DC charging. (The light reacts to the charging status in real time)
SMTO1002 No Signal Generator	SMTO1002S signal generator {Amplitude: 0.} V - 8V (minimum resolution 10 MV) Offset: 0V - (+ - 4V) (minimum resolution 10mV) Duty cycle: 0% - 100% (1% minimum resolution) Synopsis: 0.01Hz - 30MHz (minimum resolution 1 / 1000) Square wave: 0.01Hz - 10MHz (minimum resolution 1 / 1000) Other waveforms (triangle wave, sawtooth wave, ringing wave): 0.01Hz - 1MHz (minimum resolution 1 / 1000)}

Product description:

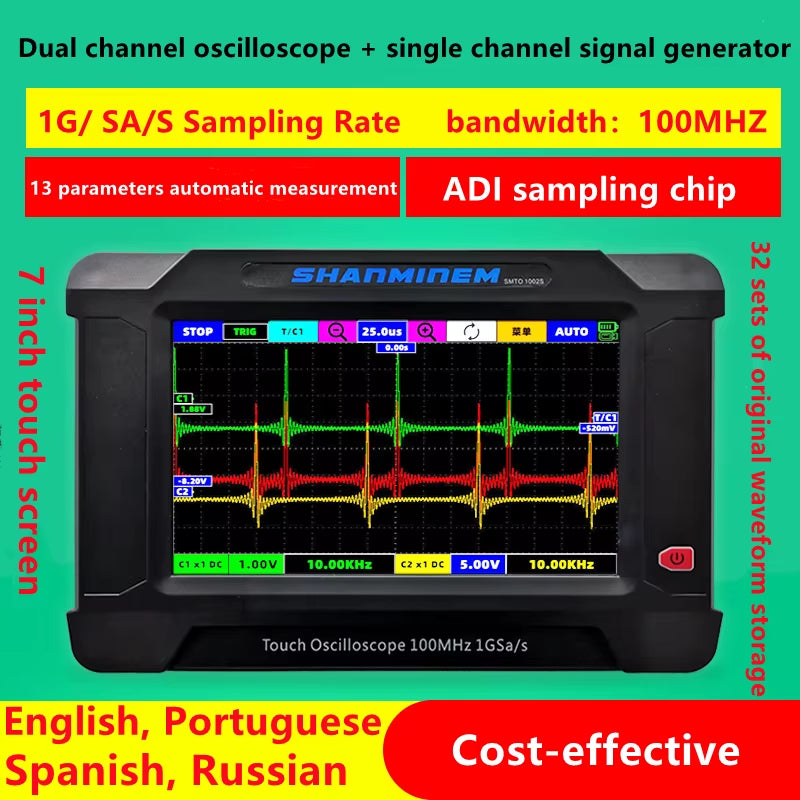

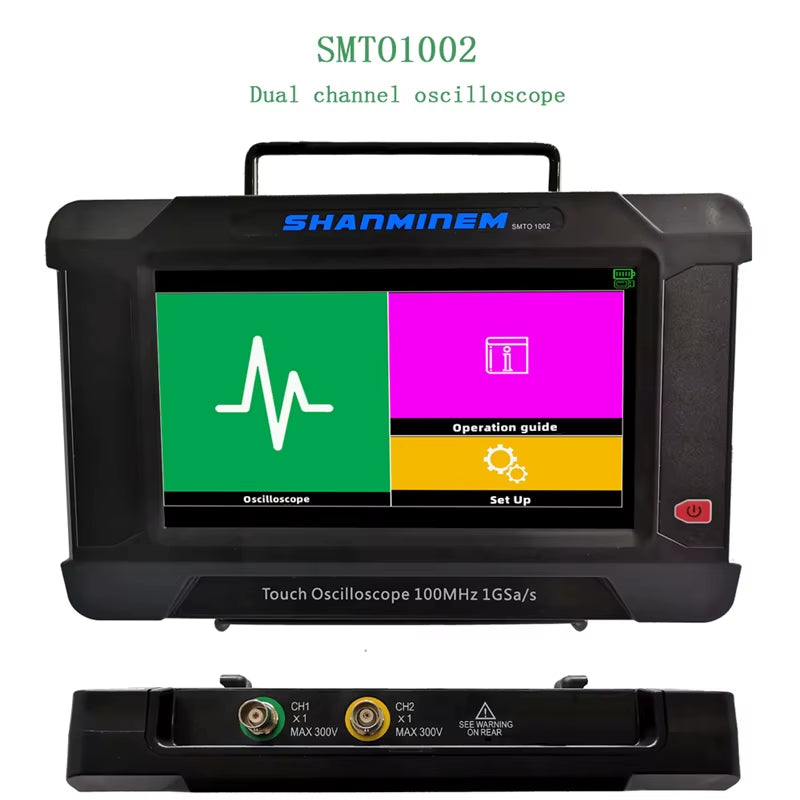

SMTO1002, SMTO1002S touch screen oscilloscope, is a 7-inch touch paneloscilloscope, supporting multi
touch. ADI high performance sampling chip isadopted, It provides real-time sampling rate of 1G Sa /s and
maximum bandwidth of 100M.
It supports automatic measurement of 13 parameters, with a maximum storage depth of 32K per channel,
fully meeting the requirements of waveform zooming and zooming under stop,32 groups of original wave-
form storage (the stored waveform can be enlarged and reduced to view the details);
Support automatic, normal, single trigger mode, tigger position can be ad justed itelligently or manually
to meet different needs;
It supports the basic mathematical operation of waveform and XY display mode.One key automatic 50
Hz-30 MHz waveform is convenient and fast.Scan mode at low sampling rate makes low frequency wave-
form display more accurate. The measurement channel supports a minimum voltage of 10mV, which
makes small signal measurement more accurate.
The measurement channel supports AC/DC coupling, and the waveform is displayed in reverse phase, which

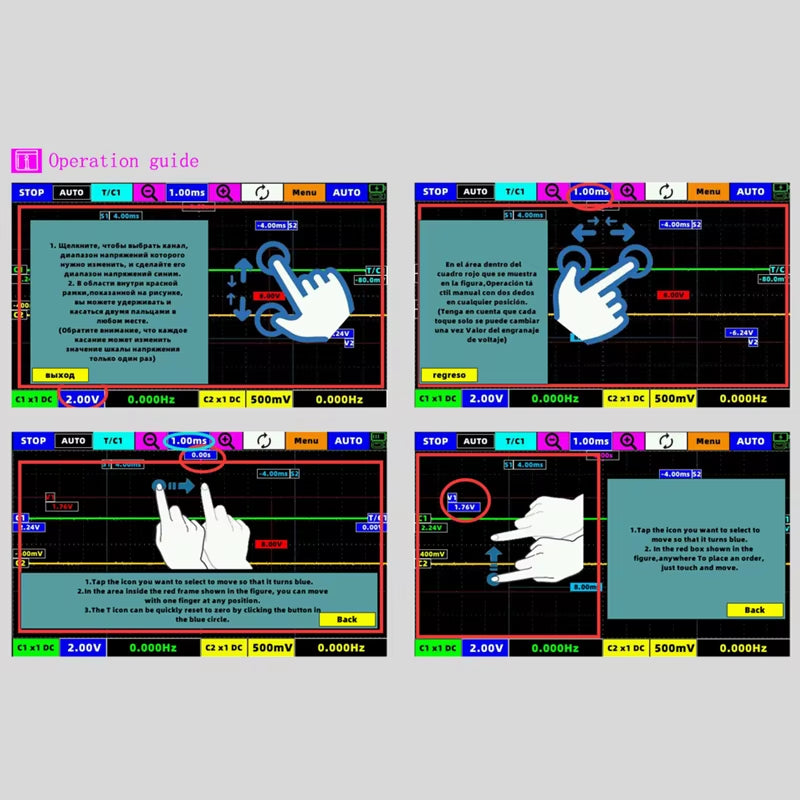

makes the waveform view more convenient. Built in quick guide, easy to use skills.

The SMT1002S also has a powerful signal generator function:

●Maximum output 30MHz chord wave (square wave 10MHz, other waveforms 1MHz);
●The minimum output of full waveform is 0.01Hz;
●The accuracy of full waveform output frequency is 1/1000;
●Square wave supports 0-100% duty cycle ad justment;
●Full waveform supports 0 8V voltage output (minimum resolution up to 10mV);(some wave-
forms will be attenuated at high frequency)
●The full waveform supports the maximum 0-(+-)4V offset (the minimum resolution is
10mV)(the high frequency of some waveforms will be attenuated)
